Auckland Laser Cutting & Folding

Laser cutting is extremely accurate (+/- 0.2mm)

Able to cut mild steel, stainless, aluminum and other non-ferrous materials.

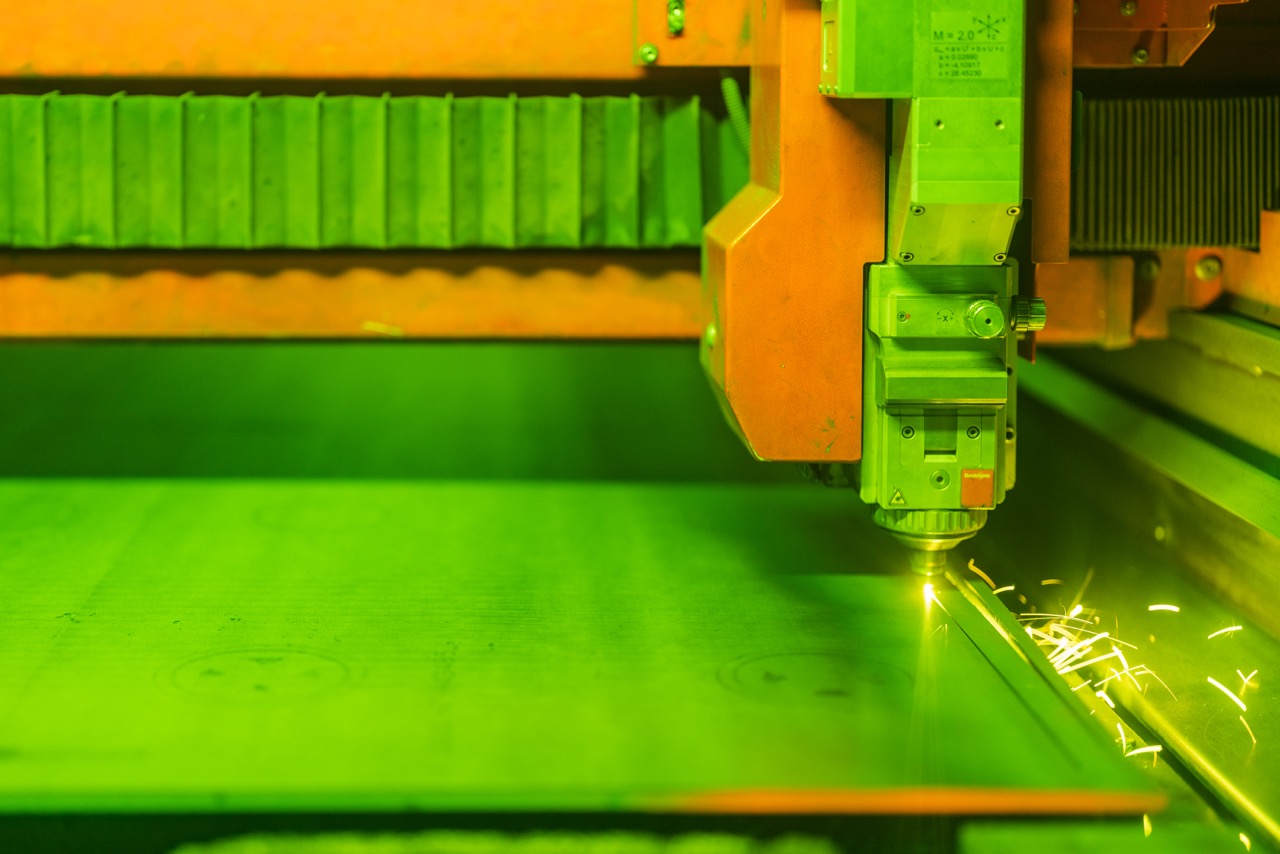

With the option of our Bystronic BySprint 6Kw fiber or our Trumpf L3030 4Kw CO2 lasers we have all the bases covered allowing us to produce a cost effective, high quality finish.

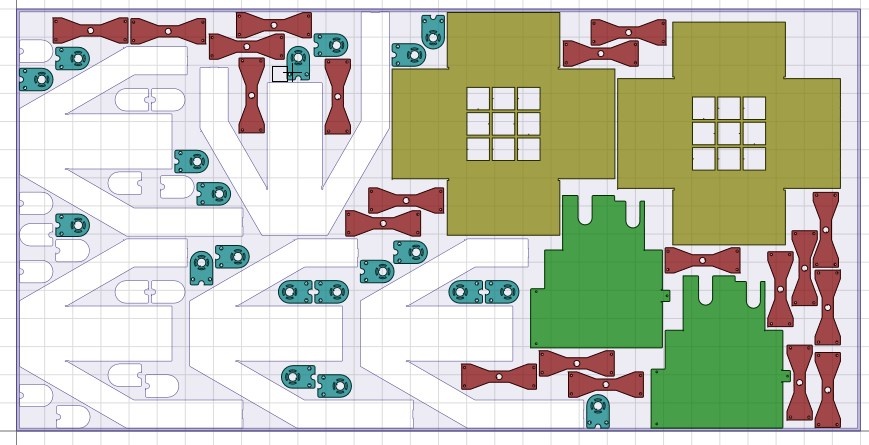

Efficient "nesting" combined with "Detection Eye" technology plus our 3000mm x 1500mm Bytrans Extended automated sheet loading system minimizes down time for one-offs or runs of 1000 pieces.
‍

Mild Steel up to 25 mm
Stainless up to 30 mm
Aluminium up to 30 mm
Copper up to 12 mm
Brass up to 15 mm

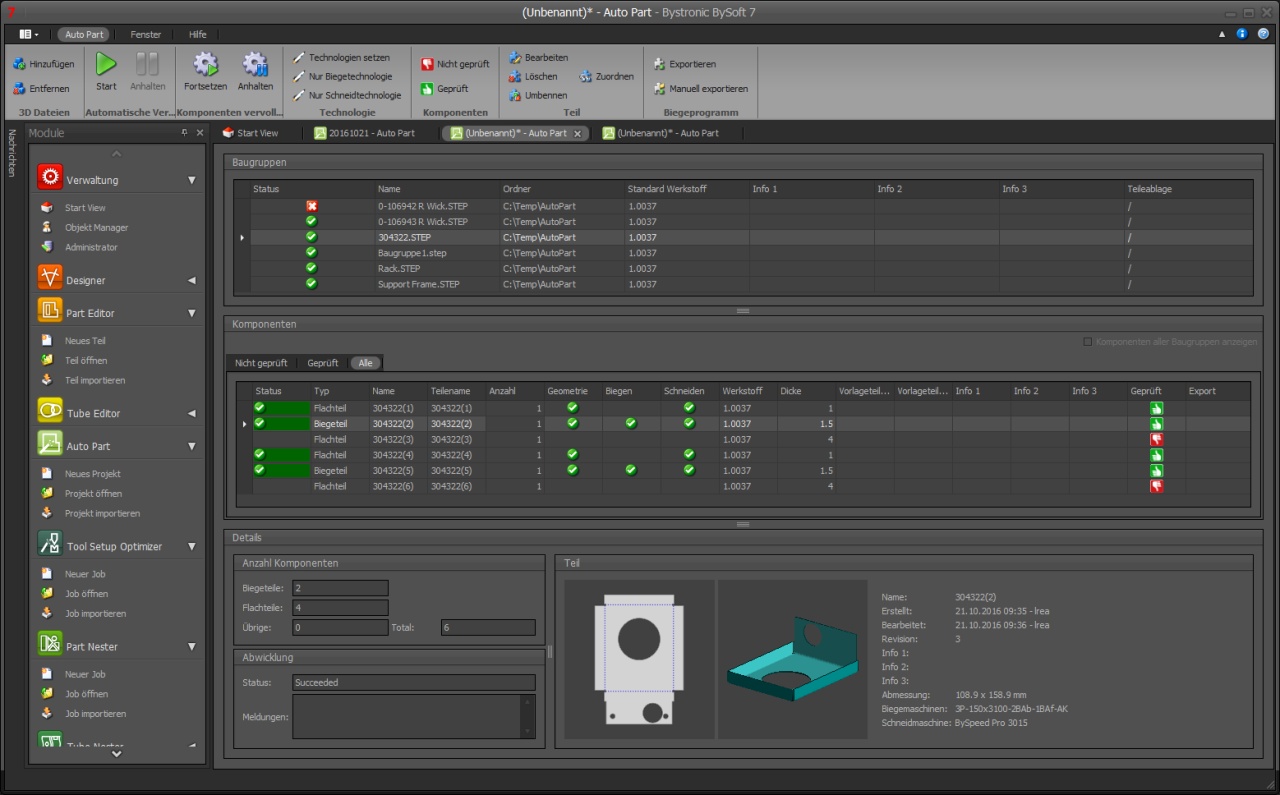

Our Bysoft 7 software will take your 3D model, flatten it out, process it for laser cutting and folding to your specifications -
all at the click of the mouse...

Precision folding from 3D drawings

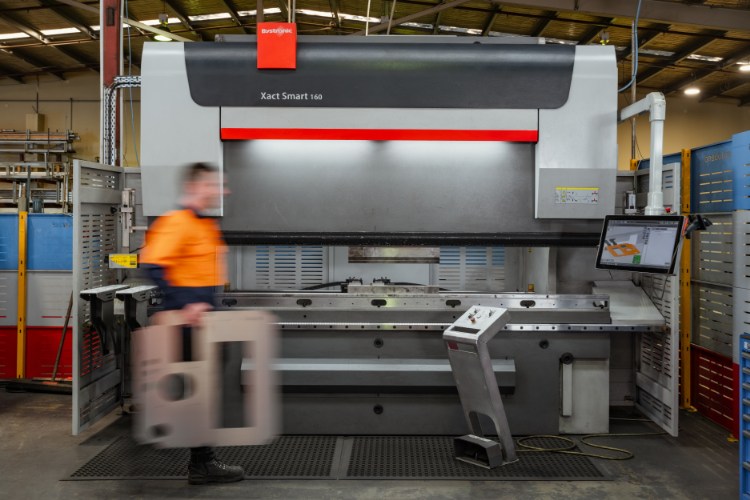

In 2016, we upgraded our bending capabilities with the purchase of a new Bystronic Xact Smart press-brake, and then in 2017 we purchased a Bystronic Xpert 40 for all those fiddly jobs.
‍
The Bystronic CNC Press Brakes use the same software suite as our BySprint laser cutter to ensure all parts produced are cut then folded to your exact specifications. Hydraulic clamping for both upper and lower tooling reduces set up time while the CNC software eliminates operator error and the need for extra set-up material.

Our machines allow us to be versatile, allowing cost-effective production of bent parts. It is highly accurate, incorporating the ByVision Bending control system, and has sensor technology directly inbuilt to ensure an even distribution of force for precise folding. Quick set-up times, ease of use, flexibility and high accuracy across the bend length ensure that your job is completed quickly and to a high standard.
‍

We download a 3D file, simulate the folding sequence, establish the bend radii, create a fold sequence, convert to a 2D pattern, nest and laser cut to suit.
Bysoft 7 provides a consistent quality of bend using the parameters and bend sequence for all parts then instructs the operator at every step.
Our Bysoft 7 software automatically checks for tonnage required, collisions and bend radii when the dimensions of our vee blocks, top tools, bend bars and hemming tooling are loaded in.
Numerous fold options for corners and more allow our programmers to reduce welding and assembly times post-folding.
Better utilisation of material: out with cutting, welding and grinding RHS; in with cutting, folding and welding from sheet — no part lengths of RHS on the rack two years later.
You pay only for the amount of steel required as we nest with other customer jobs.
Make stronger parts that weigh less. CNC interlocking design, fold, cut and weld allows your finished product to look smart, plus be lighter and stronger.
Save money — no need to cut those extra profiles used in a manual set-up.
We simulate the folding and establish the bend radii before we cut the flat profile.
